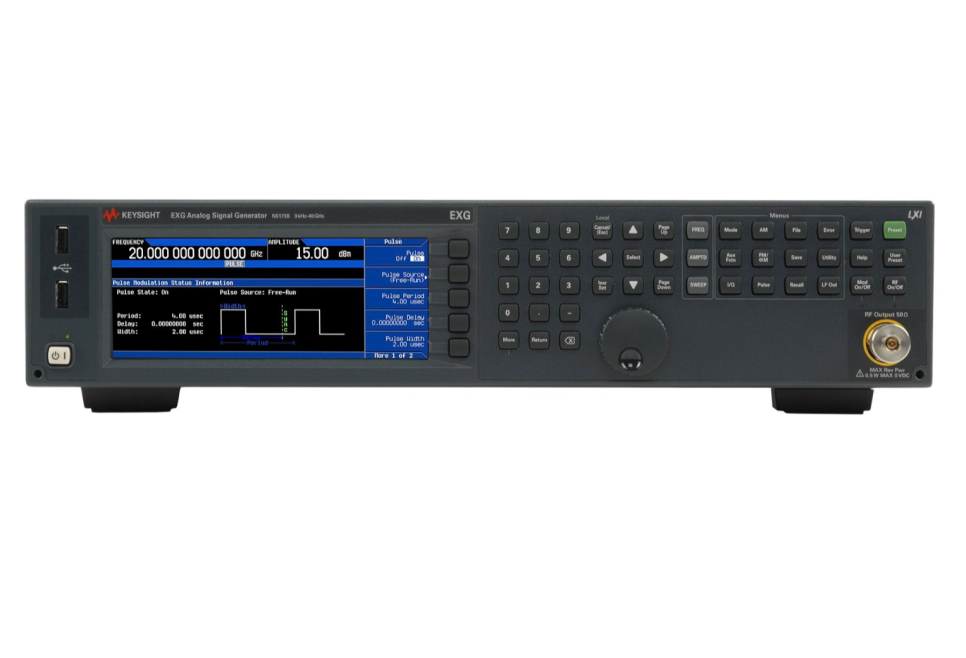

N5170B EXG 시리즈 신호 발생기 [KEYSIGHT] 키사이트 벡터, 마이크로파 시그널 제너레이터

제품특징
  • 주파수 : 9 kHz to 40 GHz
  • 위상 잡음 @ 1 GHz : -122 dBc/Hz
  • IQ 변조 : 최대 200 MHz
  • 변조 타입 : AM, FM, PM, Pulse

주요 특징​

제조 테스트에 최적화된 비용 효율적인 신호 생성기 (N5171B/N5172B)



EXG X-시리즈 RF 아날로그 / 벡터 신호 생성기, 9 kHz ~ 6 GHz

  • 더 빠른 처리 속도, 더 긴 가동 시간

  • 업계 최고의 출력 파워로 콤포넌트의 기본 파라메트릭 테스트 및 수신기 기능 검증 수행

  • 다기능 생성기로 복잡한 아날로그 변조 시나리오를 시뮬레이션하여 수신기 성능을 철저히 검증

  • 자체 유지보수 솔루션과 저비용 수리로 가동 중지 시간과 경비 최소화

​

뛰어난 하드웨어 성능으로 수율 극대화

  • 탁월한 수준의 정확도와 반복성으로 구성요소를 자신 있게 테스트

  • 뛰어난 ACPR, EVM 및 출력 전력으로 콤포넌트의 기본 파라메트릭 테스트와 수신기의 기능 검증

  • 업계 최고의 출력 파워로 테스트 시스템 손실 보상

  • 빠른 스위칭 속도로 처리량 극대화

  • 2개의 랙 유닛 높이로 테스트 공간 절약

  • 현재 필요한 기능만 선택해서 사용하다 향후 필요 시 손쉽게 추가 기능 업그레이드

​

낮은 소유 비용으로 리소스 극대화

  • 1세대 MXG 트랙 기록을 기반으로 하는 높은 장애 사이 평균 시간(MTBF)으로 가동 시간 증가

  • 자체 유지보수 전략과 저렴한 수리 비용으로 가동 중지 시간 및 비용 최소화

​

​

​

비용 효율적인 EXG 마이크로파 아날로그 신호 생성기로 예산과 성능의 균형 유지 (N5173B)


N5173B EXG X-시리즈 마이크로파 아날로그 신호 생성기, 9 kHz ~ 40 GHz

키사이트 N5173B EXG 마이크로파 아날로그 신호 생성기는 예산과 성능 간 균형이 필요할 때 비용 효과적인 선택입니다. 광대역 필터, 앰프, 수신기 등에 대한 파라메트릭 테스트를 처리하는 데 필요한 신호를 제공합니다. 13, 20, 31.8 또는 40 GHz에 대한 저렴한 커버리지로 기본 LO 업컨버전 또는 CW 차단을 수행합니다. 출력 전력(20 GHz에서 +20 dBm ), 낮은 고조파(≤–55 dBc) 및 풀 스텝 감쇠를 최적으로 조합해 필터, 앰프와 같은 광대역 마이크로파 콤포넌트의 특성을 분석합니다. 하루 ±5 ppb 미만의 에이징 속도로 표준 고성능 OCXO를 제공하는 고안정성 시스템 레퍼런스로 사용하십시오.

​

  • 마이크로파 콤포넌트 및 수신기의 파라메트릭 테스트를 처리하여 예산과 성능의 균형 유지

  • 마이크로파 콤포넌트와 수신기의 파라메트릭 테스트 처리

  • 마이크로파 백홀 링크를 위한 로컬 오실레이터(LO) 업컨버전이나 수신기 테스트를 위한 연속 발진(CW) 차단 수행

  • 600-µs 주파수 스위칭으로 테스트 처리량 극대화

  • 출력 전력, 낮은 고조파 및 풀 스텝 감쇠로 마이크로파 필터 및 앰프의 특성 분석

  • 안정성이 높은 시스템 레퍼런스로 사용: 표준 고성능 OCXO의 에이징 속도는 하루 5x10-10개 부품

주파수 성능표 [N5171B/N5172B] (Frequency Specifications)

Frequency range

Frequency range

Option 501 (N5171B only)

9 kHz to 1 GHz

Option 503

9 kHz (5 MHz IQ mode) to 3 GHz

Option 506

9 kHz (5 MHz IQ mode) to 6 GHz

Option 506 + FRQ

9 kHz (5 MHz I/Q mode) to 7.2 GHz 1

Resolution

0.001 Hz

Phase offset

Adjustable in nominal 0.1 ° increments

Frequency bands 2

Band

Frequency range

N

1

9 kHz to < 5 MHz

Digital synthesis

1

5 to < 250 MHz

1

2

250 to < 375 MHz

0.25

3

375 to < 750 MHz

0.5

4

750 to < 1500 MHz

1

5

1500 to < 3000.001 MHz

2

6

3000.001 to 6000 MHz

4

Frequency switching speed 3, 4

Standard

Option UNZ 5

Option UNZ, typical

CW mode

SCPI mode

≤ 5 ms, typical

≤ 1.15 ms

≤ 950 µs

List/step sweep mode

≤ 5 ms, typical

≤ 900 µs

≤ 800 µs

Digital modulation on (N5172B only)

SCPI mode

≤ 5 ms, typical

≤ 1.15 ms

≤ 1.05 ms

List/step sweep mode

≤ 5 ms, typical

≤ 900 µs

≤ 800 µs

출력 성능 [N5171B/N5172B] (Amplitude Specifications)

Output parameters

Settable range

+19 to –144 dBm (Standard)

+30 to –144 dBm (Option 1EA)

Resolution

0.01 dB

Step attenuator

0 to 130 dB in 5 dB steps electronic type

Connector

Type N 50 Ω, nominal

Max output power 1 () = typical

Frequency

Standard

Option 1EA

9 kHz to 10 MHz

+13 dBm

+17 dBm (+18 dBm)

> 10 MHz to 3 GHz

+18 dBm

+21 dBm (+26 dBm)

> 3 to 6 GHz

+16 dBm

+18 dBm (+19 dBm)

주파수 성능표 [N5173B] (Frequency Specifications)

Range

Frequency range

Option 513

9 kHz to 13 GHz

Option 520

9 kHz to 20 GHz

Option 532

9 kHz to 31.8 GHz

Option 540

9 kHz to 40 GHz

Resolution

0.001 Hz

Phase offset

Adjustable in nominal 0.1° increments

Frequency switching speed 1 () = typical

Standard

Option UNZ 2, 4

Option UZ2, 3, 4

CW mode

SCPI mode

(≤ 5 ms)

≤ 1.15 ms (≤ 750 µs)

< 1.65 ms (1 ms)

List/step sweep mode

(≤ 5 ms)

≤ 900 µs (≤ 600 µs)

< 1.4 ms (850 µs)

출력 성능 [N5173B] (Amplitude Specifications)

Output parameters

Settable range (with Option 1E1 and 1EA)

+30 to –135 dBm

Settable range (without Option 1E1 and 1EA)

+19 to –20 dBm

Resolution

0.01 dB

Step attenuator (1E1)

0 to 115 dB in 10 dB steps mechanical type

Attenuator hold range

–15 dBm to maximum specified output power with step attenuator in 0 dB state; can be offset using option 1E1 mechanical attenuator

Connector

513/520 = 3.5 SMA male, 532/540 = 2.4 mm male, 50 Ω (nom)

(Option 1ED adds Type-N connector to a 513 or 520)

Max output power 1 (dBm, with or without step attenuator, Option 1E1)

Frequency

Standard

High power Option 1EA

Option 513, 520

9 kHz to 3.2 GHz

+18

+23

> 3.2 to 13 GHz

+18

+20

> 13 to 20 GHz

+15

+19

Option 532, 540

9 kHz to 3.2 GHz

+14

+21

> 3.2 to 17 GHz

+14

+16

> 17 to 31.8 GHz

+13

+15

> 31.8 to 40 GHz

+11

+15

​

제품 구성 가이드

(Configuration Guide)

제품 구성 설정에 있어 문의점이 발생한다면 저희 위슨에게 문의해 주시길 바랍니다.

​

N5171B EXG X-Series RF Analog Signal Generator

Configure your new EXG analog signal generator

Step 1. Select maximum frequency range (required option; frequency range not upgradeable)

Description

Option number

Additional information

Frequency range from 9 kHz to 1 GHz

N5171B-501

Not compatible with 503, 506

Frequency range from 9 kHz to 3 GHz

N5171B-503

Not compatible with 501, 506

Frequency range from 9 kHz to 6 GHz

N5171B-506

Not compatible with 501, 503

Step 2. Choose connector configuration

Description

Option number

Additional information

Move all connectors to rear panel

N5171B-1EM

Not upgradable

Step 3. Choose performance enhancement options

Description

Option number

Additional information

AM, FM, phase modulation

N5171B-UNT

Narrow pulse modulation

N5171B-UNW

Multifunction generator

N5171B-303

Instrument security and removable

memory card

N5171B-006

No internal non-volatile memory

N5171B-SD0

Requires firmware B.01.80 or newer

Fast switching

N5171B-UNZ

High output power

N5171B-1EA

Flexible reference input (1 to 50 MHz)

N5171B-1ER

N5172B EXG X-Series RF Vector Signal Generator

Configure your new EXG vector signal generator

Step 1. Select maximum frequency range (required option; frequency range not upgradeable)

Description

Option number

Additional information

Frequency range from 9 kHz to 3 GHz

N5172B-503

Not compatible with 506

Frequency range from 9 kHz to 6 GHz

N5172B-506

Not compatible with 503

Frequency range from 9 kHz to 7.2 GHz

N5172B-FRQ

Requires 506 and N5182BX07 Frequency Extender1

1. The N5182BX07 Frequency Extender is orderable separately. Refer to the N5182BX07 configuration guide for more information.

Step 2. Choose connector configuration

Description

Option number

Additional information

Move all connectors to rear panel

N5172B-1EM

Not upgradable

Step 3. Choose performance enhancement options

Description

Option number

Additional information

AM, FM, phase modulation

N5172B-UNT

Enhanced dynamic range

N5172B-UNV

Requires 653

Narrow pulse modulation

N5172B-UNW

Fast switching

N5172B-UNZ

Multifunction generator

N5172B-303

Instrument security and removable

memory card

N5172B-006

Internal solid-state memory

N5172B-009

No internal non volatile memory/solid

state drive

N5172B-SD0

Not compatible with option 009 and 660

Requires firmware B.01.80 or newer

High output power

N5172B-1EA

Differential I/Q outputs

N5172B-1EL

Requires 653

Flexible reference input (1-50 MHz)

N5172B-1ER

LO in/out for phase coherency

N5172B-012

Expanded license key upgradability

N5172B-099

Option 099 is recommended for anyone considering future upgrades. Option 099 simplifies the upgrade process by enabling upgrades via a license key for Options 1EA, UNV, and UNZ. Without Option 099, upgrades for these options require purchase and installation of hardware in a field retrofit kit. For more information, visit

www.keysight.com/find/exg_upgrades.

Step 4. Choose baseband generator options

Description

Option number

Additional information

ARB baseband generator

(60 MHz RF bandwidth, 32 MSa)

N5172B-653

Upgrade baseband generator from 60

to 120 MHz RF bandwidth

N5172B-655

Requires 653

Upgrade baseband generator from

120 to 160 MHz RF bandwidth

N5172B-657

Requires 653 and 655

Upgrade baseband generator memory

from 32 to 256 MSa

N5172B-021

Requires 653

Upgrade baseband generator memory

from 32 to 512 MSa

N5172B-022

Requires 653

Upgrade baseband generator with

real-time capability

N5172B-660

Requires 653

Digital output connectivity with the

N5102A

N5172B-003

Requires 653, not upgradable

Digital input connectivity with the

N5102A

N5172B-004

Requires 653, not upgradable

Step 5. Choose Signal Studio and embedded software

Note: The following software can be added at purchase or as an upgrade. To configure Signal Studio applications, refer to the configuration assistant at: www.keysight.com/find/signalstudio. For more information on Signal Studio configuration and licenses, go to www.keysight.com/find/SS_licensing.

Product number

Description

Hardware requirements

Recommended hardware options

Cellular communications

N7600C

Signal Studio for W-CDMA/HSPA+ (ARB

and real-time)

653

660 for real-time

403, 503, UNV

N7601C

Signal Studio for cdma2000®/1xEV-DO

(ARB and real-time)

653

660 for real-time

403, 503, UNV

N7602C

Signal Studio for GSM/EDGE/Evo (ARB

and real-time)

653

660 for real-time

403, 503, 1ER, UNV, UNZ

N7612C

Signal Studio for TD-SCDMA/HSDPA

653

403, 503, UNV

N7624C

Signal Studio for LTE/LTE-Advanced FDD

(ARB and real-time)

653

660 for real-time

403, 506, 655, UNV

N7625C

Signal Studio for LTE/LTE-Advanced TDD

(ARB and real-time)

653

660 for real-time

403, 506, 655, UNV

N7626C

Signal Studio for V2X

653, 506

403, 1EA, 1ER, 009, 655,

UNV, UNZ

N7630C

Signal Studio for Pre-5G

653

403, 506, 655, UNV

N7631C

Signal Studio for 5G NR

653

403, 506, 655, UNV

Wireless connectivity

N7606C

Signal Studio for Bluetooth®

653

403, 506, UNV

N7607C

Signal Studio for DFS radar profiles

653, 506

655

N7610C

Signal Studio for Internet of Things (IoT)

653

N7615C

Signal Studio for Mobile WiMAXTM

653

403, 506, UNV

N7617C

Signal Studio for WLAN

802.11a/b/g/j/p/n/ac/ah

653

403, 506, 655, UNV

Audio/video broadcasting

N7611C

Signal Studio for broadcast radio

653

403, 506, UNV

N7623C

Signal Studio for digital video (ARB and

real-time)

653

660 for real-time

022, 506, UNV

N7640C

Radio Test LMR

653

403, 506, 655, 009

Navigation and radar

N7609C

Signal Studio for Global Navigation

Satellite Systems (GNSS) (real-time)

653

660 for real-time

022, 403, 503

N7620B

Signal Studio for Pulse Building

653, UNW

403, 655, UNV, 1EA

General purpose

N5180302B

Avionics (VOR/ILS)

N5180320B

Pulse train generator

UNW

N5180403B

Calibrated AWGN

653

N5180430B

Multitone and two-tone

653

N5180431B

Custom digital modulation

653

N5180432B

Phase noise impairment

653

N5180UN7B

Internal bit error rate analyzer

N7605C

Signal Studio for real-time fading (real-

time)

403, 653, 660

506, 655

N7608C

Signal Studio for custom modulation

653, 506

N7614C

Signal Studio for power amplifier test

653

660 for real-time

655, 1EA

N7621B

Signal Studio for multitone distortion

653, UNV, 1EA

655

N7622C

Signal Studio toolkit – free utility

653

503, UNV

N5172B 221-229

Waveform license 5-pack 1 to 9

(purchase up to 9-pack for 45 Signal Studio waveforms)

653

503, UNV

N5172B 250-259

Waveform license 50-pack 1 to 10

(purchase up to 10 packs for 500 Signal Studio waveforms)

653

503, UNV

N6171A

MATLAB software

503, 653, UNV

Configure Your N5173B EXG Microwave Analog Signal Generator

Step 1. Select maximum frequency range (required option; frequency range not upgradeable)

Description

Option number

Additional information

Matching N5183A options

Frequency range from 9 kHz to 13 GHz

N5173B-513

Not compatible with 520, 532, 540

Includes standard adapter 3.5 mm female to 3.5 mm female

Frequency range from 9 kHz to 20 GHz

N5173B-520

Not compatible with 513, 532, 540

Includes standard adapter 3.5 mm female to 3.5 mm female

N5183A-520

Frequency range from 9 kHz to 31.8 GHz

N5173B-532

Not compatible with 513, 520, 540

Includes standard adapter set, 2.4 mm female-female and

2.4 mm female to 2.9 mm female

N5183A-532

Frequency range from 9 kHz to 40 GHz

N5173B-540

Not compatible with 513, 520, 532

Includes standard adapter set, 2.4 mm female-female and

2.4 mm female to 2.9 mm female

N5183A-540

Step 2. Choose connector configuration

Description

Option number

Additional information

Matching N5183A options

Move all connectors to rear panel

N5173B-1EM

Not upgradable

N5183A-1EM

Type-N (f) RF output connector

N5173B-1ED

Not upgradable

Not compatible with 532 or 540

Includes standard adapter type-N male to 3.5 mm female

N5183A-1ED

Standard connector 3.5mm

N5173B-UNC

Not upgradable

Not compatible with 532 or 540

Includes standard adapter 3.5mm female to 3.5mm female

Step 3. Choose performance enhancement options

Description

Option number

Additional information

Matching N5183A options

AM, FM, phase modulation

N5173B-UNT

N5183A-UNT

Narrow pulse modulation

N5173B-UNW

Not compatible with UW2

N5183A-UNW

Narrow pulse modulation up to 31.8 GHz

N5173B-UW2

Not compatible with UNW: Requires 540

N5183A-HNS

Multifunction generator

N5173B-303

Not upgradable

Instrument security and removable

memory card

N5173B-006

N5183A-006

Fast frequency switching

N5173B-UNZ

Not compatible with UZ2

N5183A-UNZ

Fast frequency switching > 1.15 ms and

± 0.05% of final frequency

N5173B-UZ2

Not compatible with UNZ

N5183A-HNZ

High output power

N5173B-1EA

N5183A-1EA

Step attenuator

N5173B-1E1

N5183A-1E1

Flexible reference input (1 to 50 MHz)

N5173B-1ER

N5183A-1ER

Step 4. Choose VDI mmW frequency extension module (optional)

Description

Option number

Frequency range from 50 to 75 GHz

E8257D-V15

Frequency range from 60 to 90 GHz

E8257D-V12

Frequency range from 75 to 110 GHz

E8257D-V10

Frequency range from 90 to 140 GHz

E8257D-V08

Frequency range from 110 to 170 GHz

E8257D-V06

Frequency range from 140 to 220 GHz

E8257D-V05

Frequency range from 220 to 330 GHz

E8257D-V03

Frequency range from 260 to 400 GHz

E8257D-V2B

Frequency range from 325 to 500 GHz

E8257D-V02

Frequency range from 500 to 750 GHz

E8257D-V1B

Frequency range from 750 to 1100 GHz

E8257D-V01

다운로드
